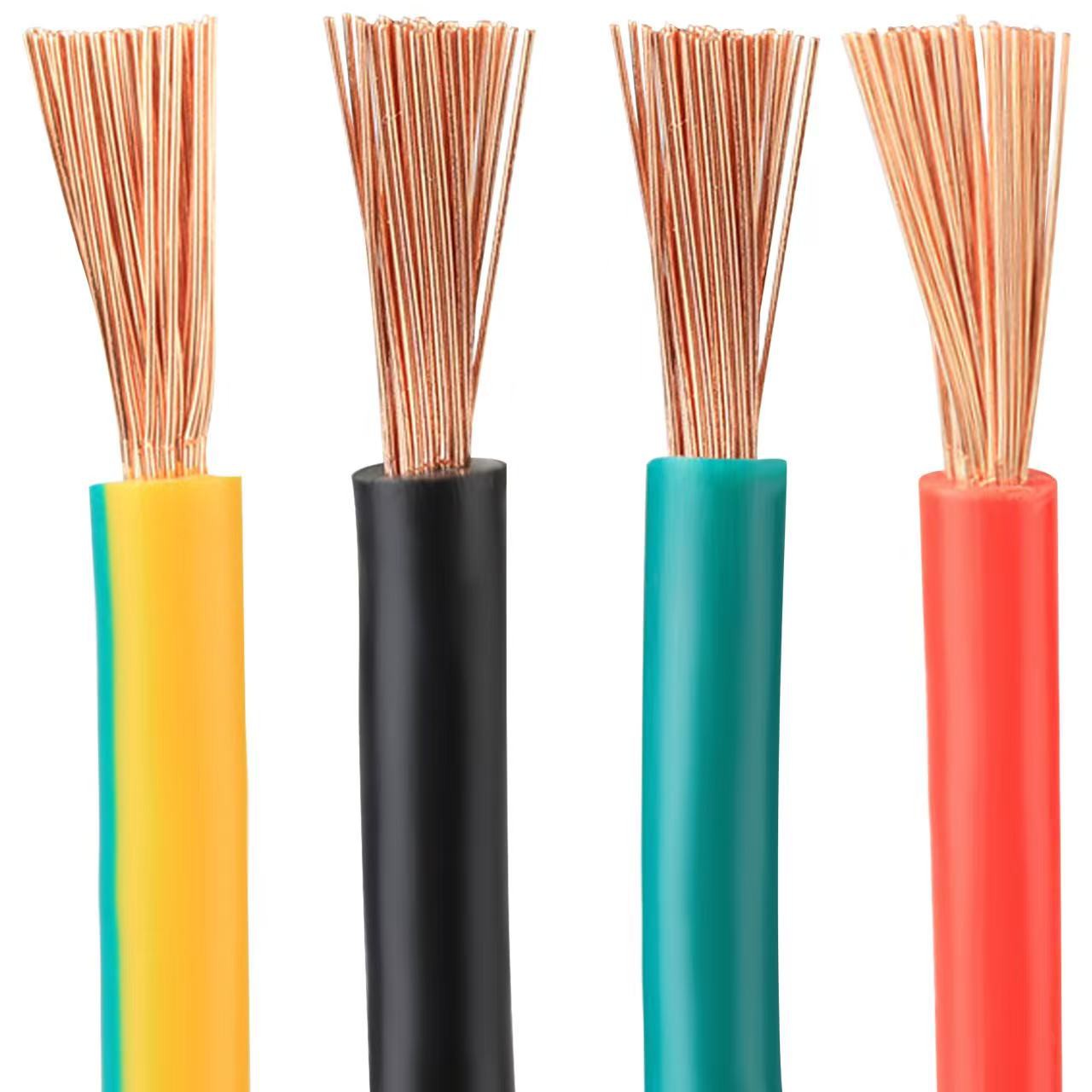

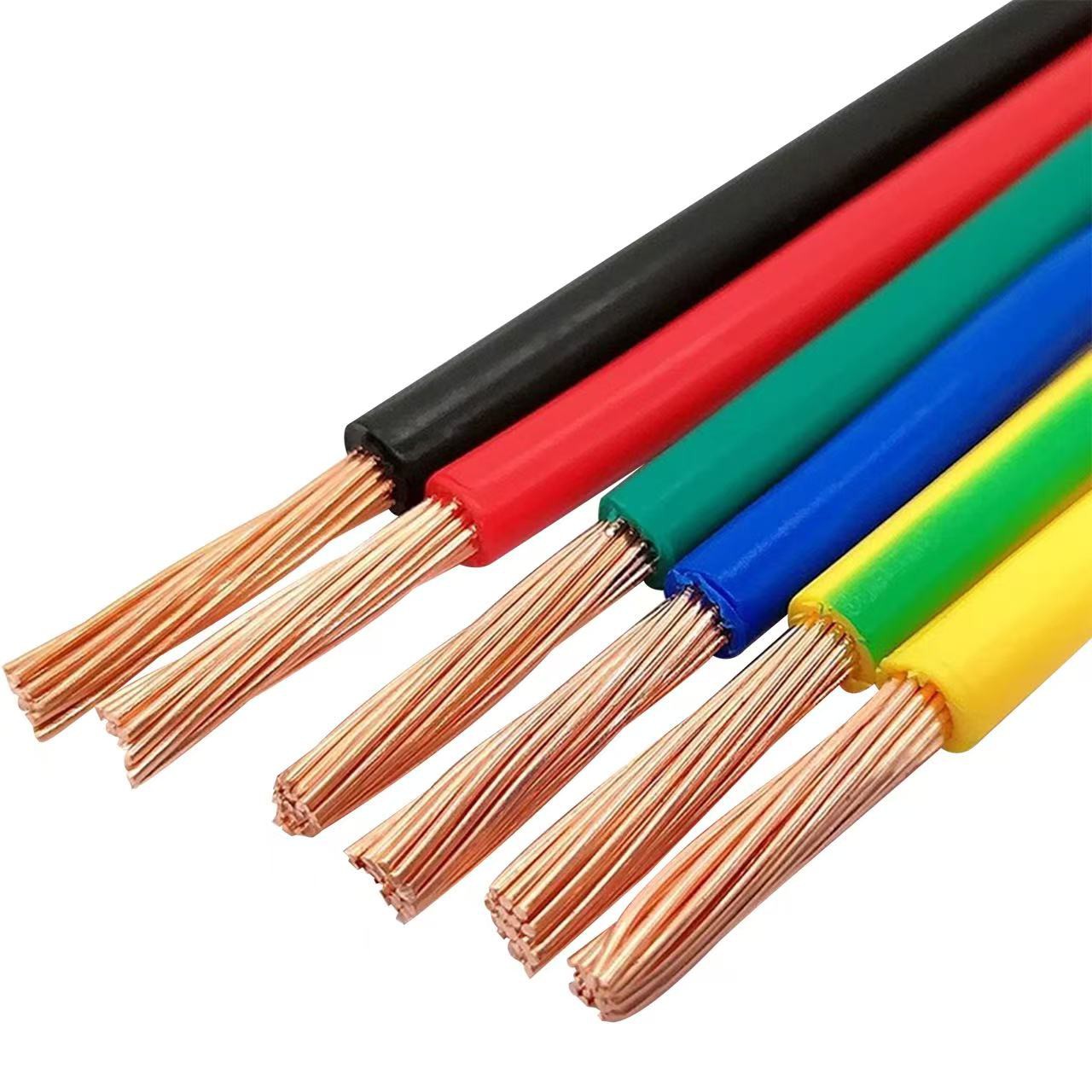

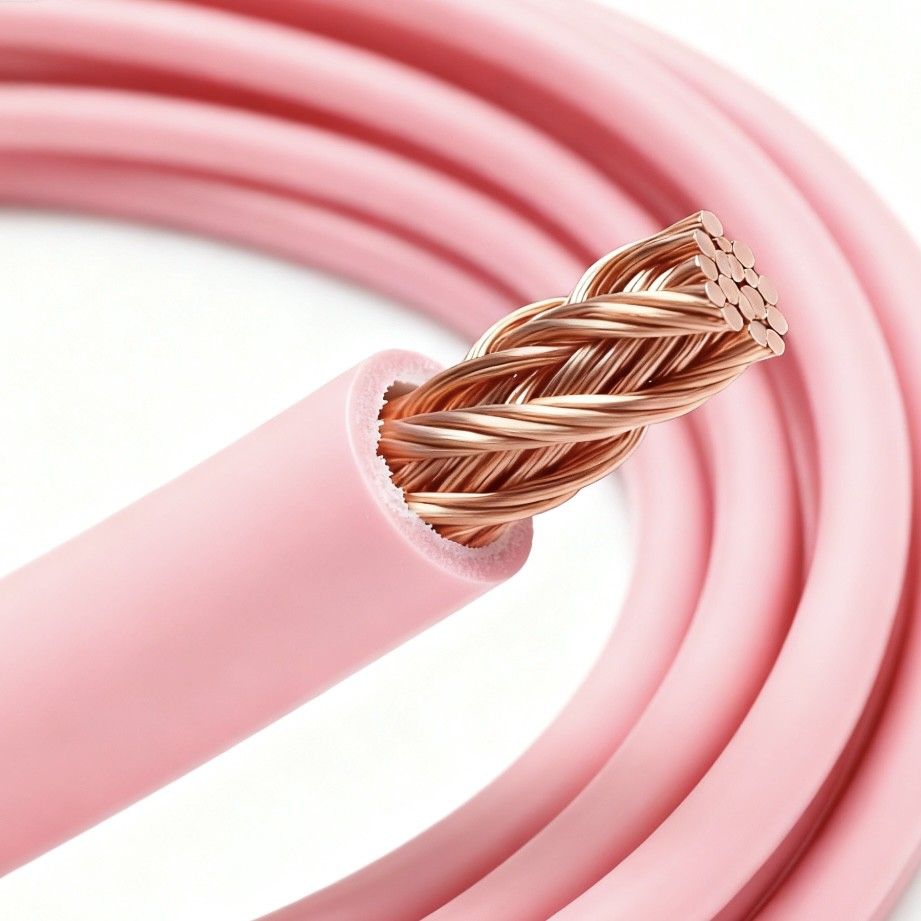

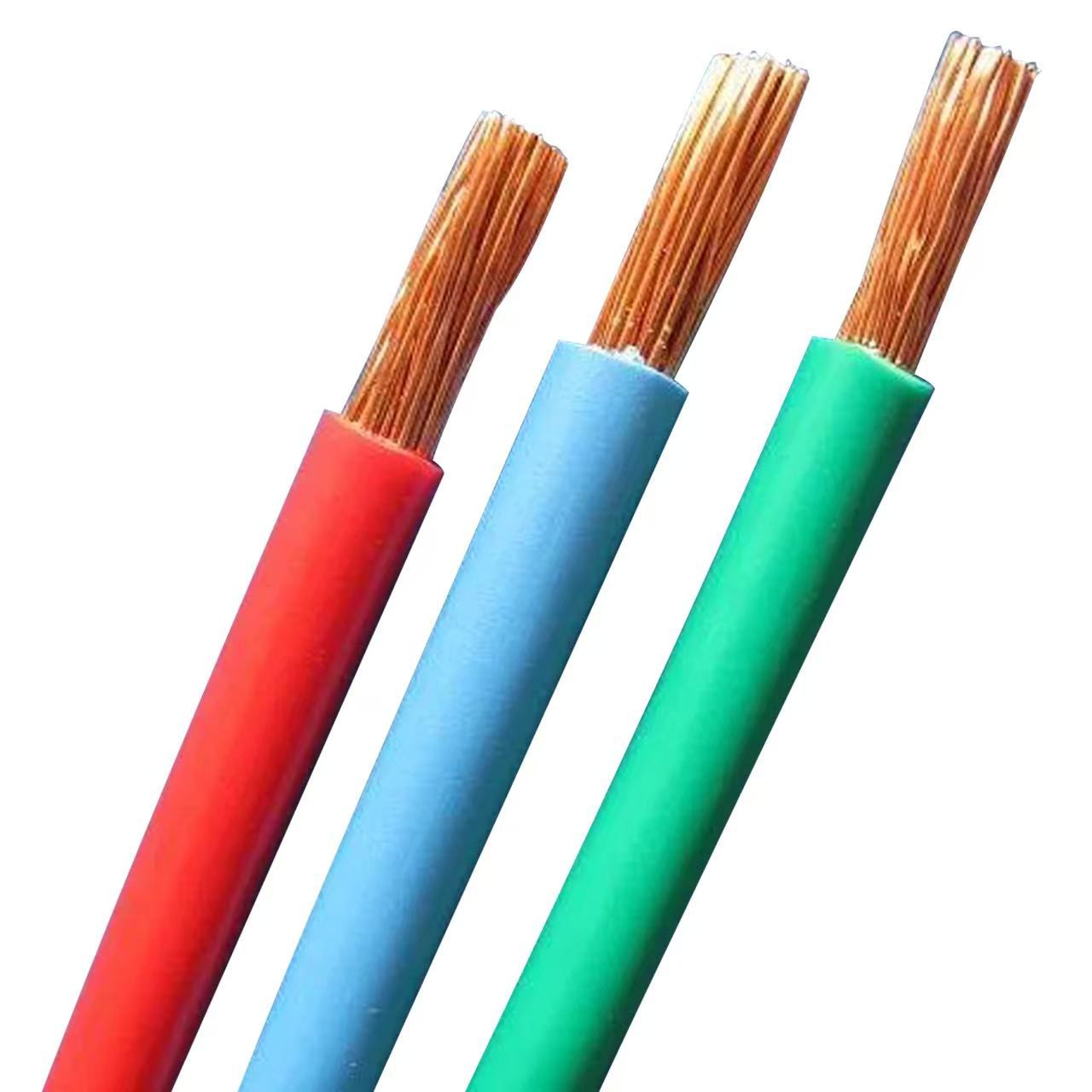

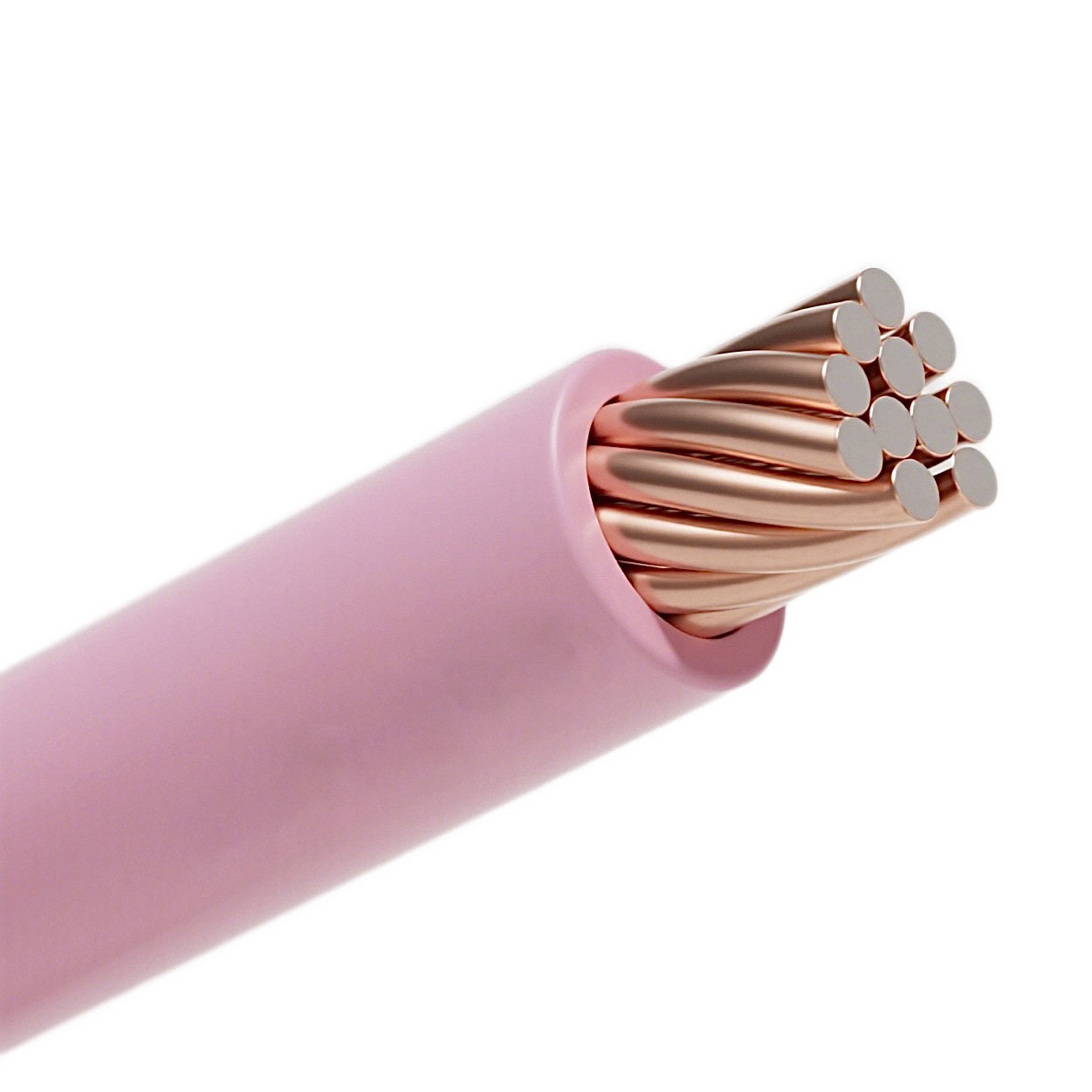

UL1095ni insinga ya elegitoronike yemejwe na UL, iyumuryango wa AWM wiring. Kiyobora ni umuringa wambaye ubusa cyangwa amabati - umuringa usizwe, kandi urwego rwo kubika ni eco - PVC yinshuti, yubahiriza ibipimo bya ROHS. Umuvuduko wacyo wapimwe ni 300V naho ubushyuhe ni dogere 80. Yatsinze UL VW - 1 flame retardant ikizamini kandi byoroshye kuyambura no gukata. Bikunze gukoreshwa mugukoresha insinga imbere mubikoresho byo murugo, ibikoresho byubuvuzi, nibindi, kandi bikwiranye nisoko ryo muri Amerika ya ruguru.

Ikiranga

Gukingira: PVC
Umuyobora: Amabati akomeye cyangwa afatanye - asize cyangwa umuringa wambaye ubusa
Ubushyuhe bugereranijwe: dogere 80
Umuvuduko ukabije: 300V
Imiyoboro y'imbere kubikoresho byo murugo nibikoresho byubuvuzi
Yatsinze UL VW-1 & CSA FT1 Ikizamini cya flame
Ibipimo ngenderwaho: UL758, UL1581

Gusaba

Mu rwego rwibikoresho byo murugo

Nibikoresho byibanze byihuza imbere mubicuruzwa nka konderasi, firigo, amashyiga ya microwave, hamwe nimashini zo kumesa, zikoreshwa mukumenyesha no gukwirakwiza amashanyarazi hagati yubuyobozi bukuru na moteri, sensor, hamwe na paneli yo kugenzura.

Mu rwego rwibikoresho byubuvuzi

Umuyoboro wamashanyarazi uhoraho wujuje ibyangombwa bisabwa byogukoresha ibikoresho nka moniteur nibikoresho byifashishwa mu gusuzuma, kandi PVC yangiza ibidukikije yangiza ibidukikije yubahiriza ibipimo byumutekano murwego rwubuvuzi.

Mu rwego rwa elegitoroniki y'abaguzi

Routers, shiraho - agasanduku ko hejuru nibindi bikoresho nabyo bishingira kumikorere yizewe kugirango bigere ku mbaraga n’itumanaho hagati y’ibice byimbere, bigatuma bahitamo uburyo bwogukoresha uburyo bwo guhuza imipaka - guhuza imiterere n’isoko ryo muri Amerika y'Amajyaruguru.

Mu rwego rwo kugenzura inganda

Irashobora gukoreshwa nkumugozi uhuza insinga ntoya, abahuza hamwe na sensor, kandi birakwiriye kubidukikije byogosha byimbere imbere yinama yubugenzuzi. Menya neza ko ibikoresho bihagaze neza mugihe kirekire - manda kandi ikora -.

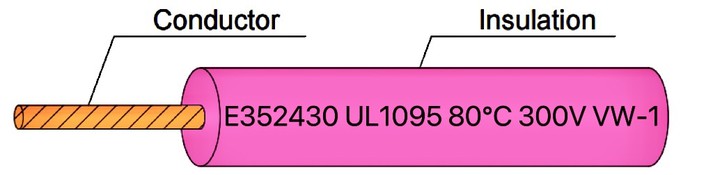

Imiterere

UL1095 PVC Insulated Electrical Wire

Kugaragaza ibicuruzwa

Umuyobozi			Kwikingira		Ntarengwa	Amashanyarazi imbaraga (VAC, 1min)

AWG	OYA. / Mm	Dia. mm	Nom.Tick. mm	Nom.Dia. mm	Kurwanya kuri dogere 20 Ω / km



30	1/0.254	0.25	0.33	0.90	361	200
	7/0.10	0.3	0.8	1.90	381
28	1/0.32	0.32	0.34	1.00	227	2000
	7/0.127	0.38	0.34	1.05	239
	7 / 0.127 OS-1 *	0.38	0.34	1.05	239
26	1/0.404	0.4	0.32	1.05	143	2000
	7/0.16	0.48	0.34	1.15	150
	7 / 0.16 OS-1 *	0.48	0.34	1.15	150
24	1/0.511	0.51	0.34	1.20	89.3	2000
	11/0.16	0.61	0.32	1.25	94.2
	7 / 0.20 OS-1 *	0.60	0.33	1.25	94.2
22	1/0.643	0.64	0.33	1.30	56.4	2000
	17/0.16	0.76	0.35	1.45	59.4
	7 / 0.254 OS-1 *	0.76	0.35	1.45	59.4
20	1/0.813	0.81	0.34	1.50	35.2	2000
	26/0.16	0.94	0.33	1.60	36.7
	7 / 0.32 OS-1 *	0.96	0.32	1.60	36.7
18	1/1.024	1.02	0.39	1.80	22.2	2000
	41/0.16	1.18	0.36	1.90	23.2
	7 / 0.404 OS-1 *	1.21	0.35	1.90	23.2
16	1/1.29	1.29	0.36	2.00	14	2000
	26/0.254	1.49	0.38	2.25	14.6

Icyemezo cya UL

Isoko ry'umusaruro

Isosiyete yacu itanga ibice byinshi byiza - ibirango mpuzamahanga bizwi kandi byabanje kugera ku mwaka kugurisha amafaranga arenga miliyoni 100. Uburebure bwose bw'insinga zakozwe ni kilometero zigera kuri 87,600, kandi hari insinga zigera kuri miliyoni 29.58. Turashobora gutanga ibisubizo kubakiriya ba wire batandukanye nibisabwa. Amasoko yacu nyamukuru arimo: Amerika, Ubwongereza, Ubudage, Turukiya, Uburusiya, Dubai, Irani, Ubuyapani, Filipine, Maleziya, Singapore, Tayilande, Burezili, Mexico, Ositaraliya, n'ibindi.

imwe - guhagarika igisubizo

itsinda ryumwuga

muremure

ubuziranenge

Ibicuruzwa byacu

Turi abahanga babigize umwuga bakora insinga na kabili, harimo insinga za Automotive, insinga za elegitoronike, insinga za Silicon Rubber, insinga z'amashanyarazi, umugozi wa PVC, insinga za XLPE, insinga za Coiled, insinga za Sensor, insinga za Automation, insinga za Lokomotive, insinga nshya ... nibindi.

Ibibazo

Ikibazo: Mugihe uguze insinga za UL1095, nigute umuntu ashobora kwemeza ko icyemezo cya UL ari ukuri kandi gifite ishingiro? Umuntu arashobora kugura ibicuruzwa byiganano cyangwa bitujuje ubuziranenge?

Igisubizo: Inomero ya UL yerekana nomero ya wire irashobora kubazwa binyuze mububiko bwa UL kugirango hamenyekane amakuru yicyemezo. Mugihe kimwe, utanga isoko asabwa gutanga kopi yicyemezo cya UL. Insinga zose za UL1095 dutanga ni ibicuruzwa biva mumiyoboro isanzwe kandi birashobora kugenzurwa niba ari ibigo bya gatatu -.

Ikibazo: Ni irihe tandukaniro riri hagati ya UL1095 na UL1015? Ni ubuhe bwoko bw'ibikoresho bubereye guhitamo?

Igisubizo: Byombi ni UL - insinga za elegitoroniki zemewe. Itandukaniro ryibanze riri mumiterere yabyo hamwe nibisabwa: UL1095 ifite umuyoboro woroheje kandi irakwiriye kohereza ibimenyetso byimbere mubikoresho bito bya elegitoroniki. Umuyoboro wa UL1015 ufite umusaraba munini area- igice cyigice kandi urashobora gutwara umuyaga mwinshi, bigatuma bikwiranye numurongo wamashanyarazi wibikoresho byo hejuru -. Niba ibikoresho ari bike - imbaraga ibikoresho bito byo murugo cyangwa igikoresho, UL1095 irakwiriye.

Ikibazo: Ni ubuhe bwoko bwo gupakira ushobora gutanga?

Igisubizo: Dutanga umuzingo - ubwoko, reel yimbaho, hamwe nudupapuro twa pallet. Niba ufite ibisabwa byihariye byo gupakira, twishimiye guhitamo igisubizo kuri wewe.
